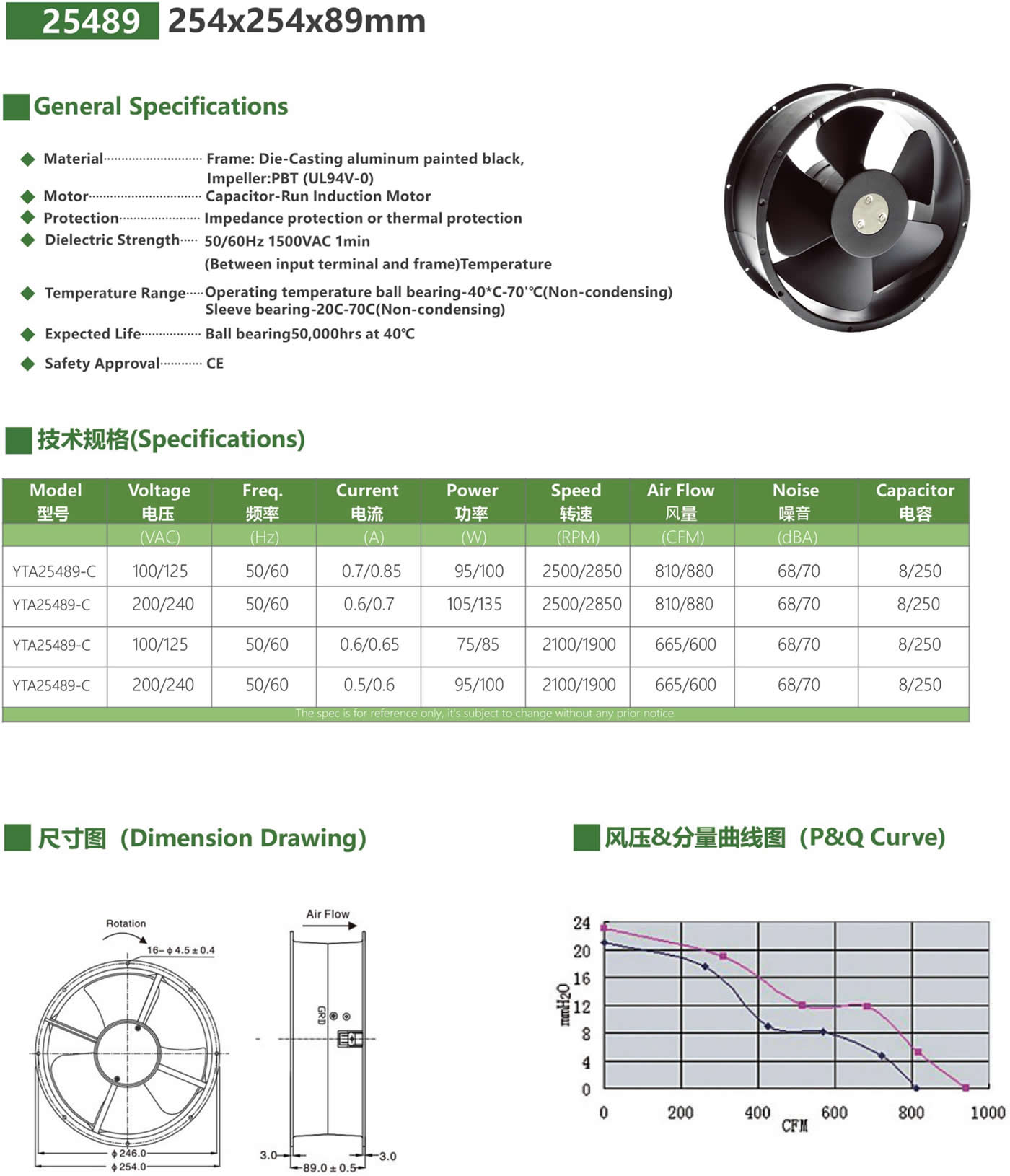

General Specifications:

Material.........

Frame: Die-Casting aluminum painted black,

Impeller: PBT (UL94V-0)

Motor......... Capacitor-Run Induction Motor

Protection......... Impedance protection or thermal protection

Dielectric Strength......... 50/60Hz 1500VAC 1min

(Between input terminal and frame)Temperature

Temperature Range.........

Operating temperature ball bearing-40℃-70℃(Non-condensing)

Sleeve bearing-20℃-70℃(Non-condensing)

Expected Life......... Ball bearing 50,000hrs at 40℃

Safety Approval......... CE
