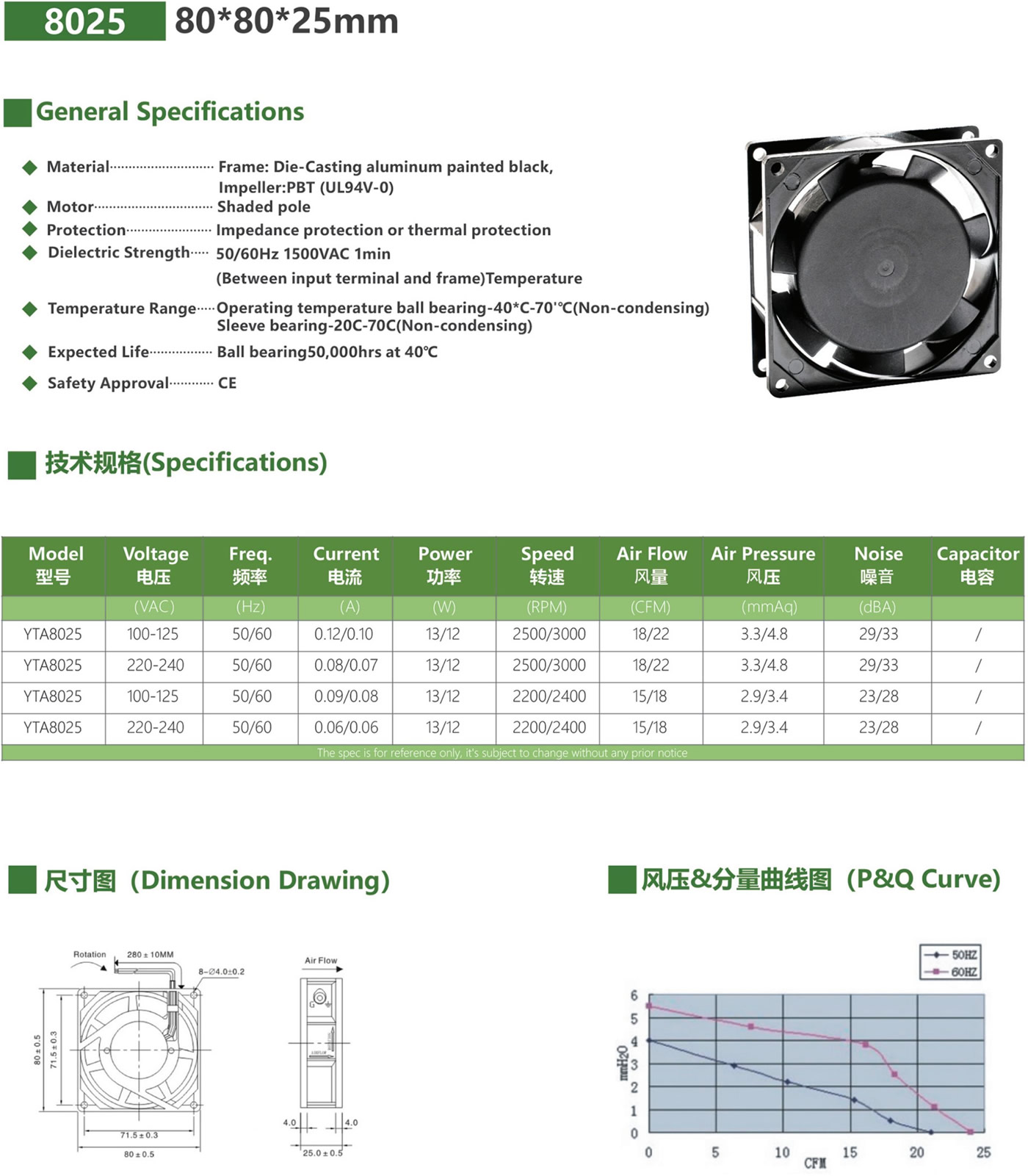

General Specifications:
Material.........
Frame: Die-Casting aluminum painted black,
Impeller:PBT (UL94V-0)
Motor......... Shaded pole
Protection......... Impedance protection or thermal protection
Dielectric Strength......... 50/60Hz 1500VAC 1min
(Between input terminal and frame)Temperature
Temperature Range.........
Operating temperature ball bearing-40°C-70°C(Non-condensing)
Sleeve bearing-20°C-70°C(Non-condensing)
Expected Life......... Ball bearing 50,000hrs at 40°C
Safety Approval……CE
